Xref Treeview

AuthorTom Snape [Prev] [Next] by Author
CategoryDrawing Control [Prev] [Next] by Category
Keywords:
Type (Source?)Macro (VBA)
LicenceFreeware
StatusTo be reviewed


Description:

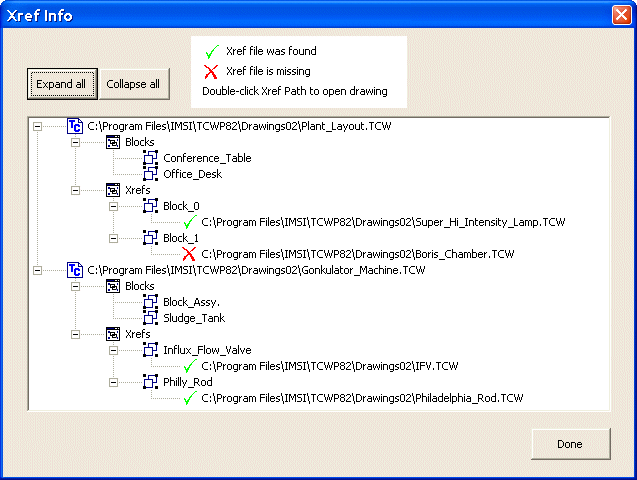

This macro uses a tree view to display all the blocks and xrefs for all open drawings. Each root of the tree is the file path for each open drawing. Then next nodes break into groups of blocks and xrefs for each drawing. For the blocks, the names of the blocks are simply listed. For the xrefs, the path to each xrefs drawing file is listed. The macro checks to see if it can find the file, and if so, a green check is placed in front of the file path; if not, a red X. Also, double-clicking on the file path for a valid XREF will cause that drawing to be opened. The tree view control used in this macro is not included in the VBA that ships with TurboCAD. It is in the ActiveX library MScomctl.ocx. This is a fairly commonly used VB runtime, and is probably on most PC's. If not, you can find it for download from many sites (Here is just one.)


Comments:




Download: .../TSnape/xrefinfo_tcm.zip (12 KB)
More Info: http://throsn.tripod.com/downloads.html
