| Author | IMSI/SoftDev | [Prev] [Next] by Author |
| Category | Graphic - Create | [Prev] [Next] by Category |
| Keywords: | ||
| Type (Source?) | Macro (VBA) | |
| Licence | Example | |
| Status | To be reviewed |
Description

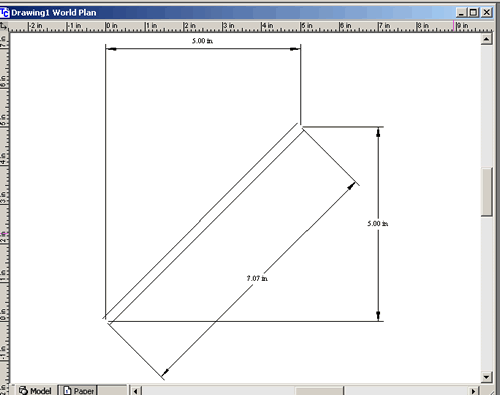

This example shows how to create a Graphic where you specify the RegenMethod name "TCW25DblLine" to create a double line. Then we create three types of linear dimension lines: horizontal, vertical and parallel.
Build Instructions
Download and unzip the archive. Add a new project to any TurboCAD drawing, and attach the DimDblLine.tcm file. Run the Main macro and observe the result.
